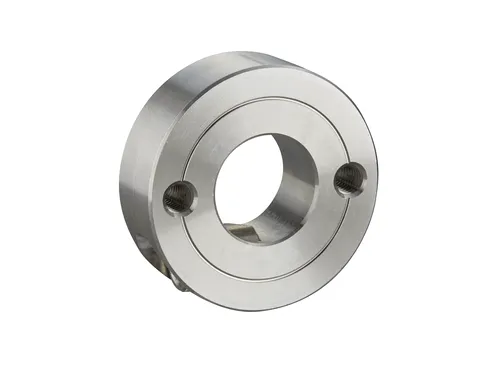

Wedge-lok Shaft Collar with 2 Threaded Holes, ID 12mm x OD 38mm, 15mm Long, 304 Stainless Steel, SCK1215SN2

SGD $19.00

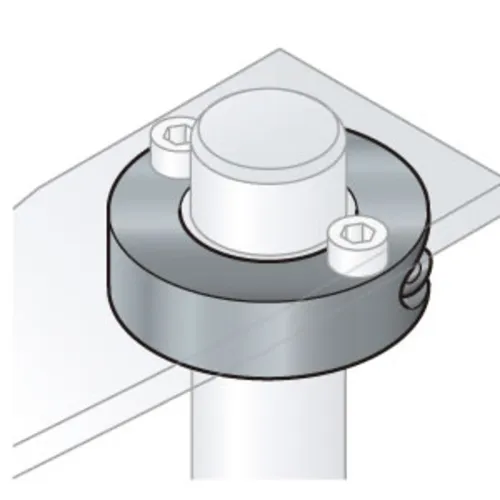

Wedge-lok shaft collars are simple to adjust for limited clamping spaces. The clamping effect uses an internal socket head cap screw which can be fastened with an allen key. When the internal socket head cap screw is fastened, the Wedge-lok shaft collar secures itself onto the shaft.

Product Details

Name

Details

SKU

:

33602040402

Materials

:

304 SST

Weight (kg)

:

0.090

Manufacturer Part Number

:

SCK1215SN2

Manufacturer

:

Iwata

Country of Origin

:

Japan

Size/Length for Product

:

15mm

Quantity Per Package

:

1 pc

Inner Diameter

:

12mm

Outer Diameter

:

38mm

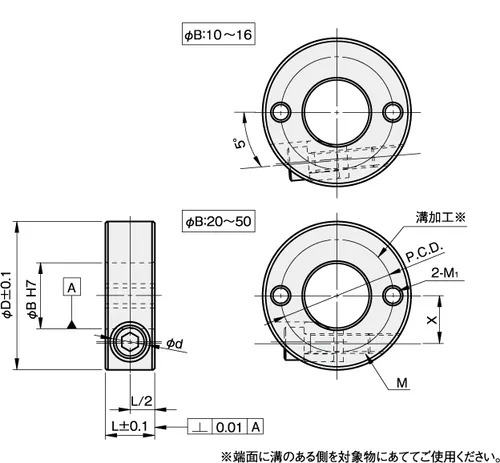

ØD

:

12.1mm

X

:

10.5mm

Tightening Screws M

:

M6 x 18mm

Screw Holes M1

:

M6 x 0.8

Screw Holes PCD

:

24mm

0 stock, ships in 20 days
