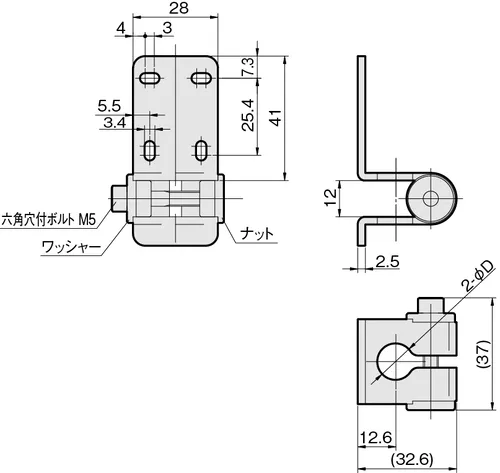

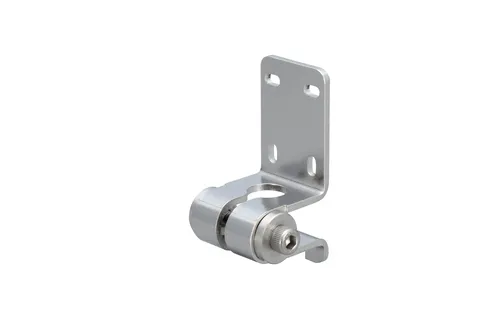

Type V Mount Photoelectric Sensor Bracket for Round Shafts Ø10mm Wide, 41mm Long x 28mm Wide, 304 Stainless Steel, FSFBZV-10S

SGD $17.00

Sensor brackets for photoelectric sensors are used to install sensors produced by major sensor manufacturers. They are available in a wide range of designs in precise dimensions for accuracy when in use.

Product Details

Name

Details

SKU

:

3340200116

Materials

:

304 SST

Weight (kg)

:

0.068

Manufacturer Part Number

:

FSFBZV-10S

Manufacturer

:

Iwata

Country of Origin

:

Japan

Thickness

:

2.0mm

Width

:

28mm

Quantity Per Package

:

1 pc

Type

:

For Round Shafts

Applicable Sensors

:

OMRON E3Z, KEYENCE PZ, SUNX CX, AZBIL HP, OPTEX FA Z

1 in stock
