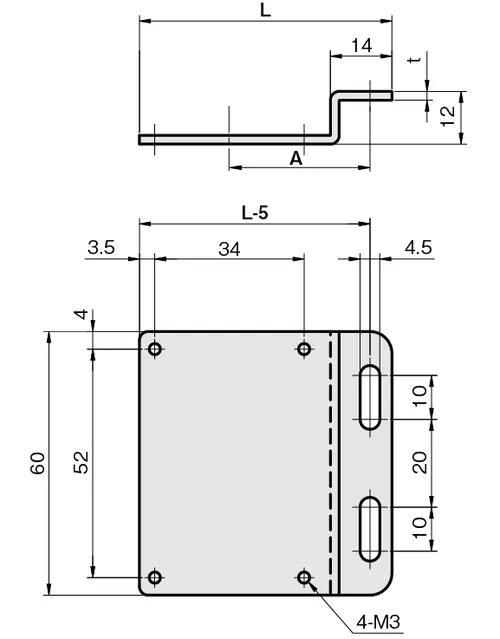

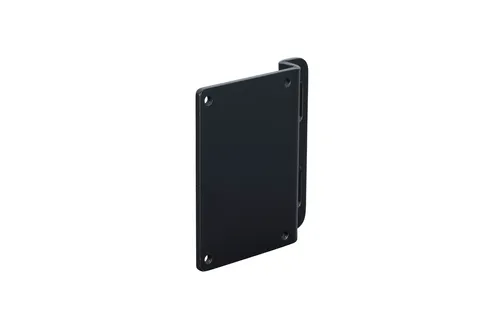

Type RE-Z Bracket for Reflector Sensors, 57.5mm Long x 60mm Wide, Steel SPCC (Cation Electrodeposition Plating), FSREZX032-Z

SGD $14.00

Sensor brackets for reflector sensors are used to install sensors produced by major sensor manufacturers. They are available in a wide range of designs in precise dimensions for accuracy when in use.

Product Details

Name

Details

SKU

:

3340300046

Materials

:

304 SST

Weight (kg)

:

0.008

Manufacturer Part Number

:

FSREZX032-Z

Manufacturer

:

Iwata

Country of Origin

:

Japan

Thickness

:

1.5mm

Width

:

60mm

Size/Length for Product

:

48mm

Quantity Per Package

:

1 pc

Reference Dimension A

:

30mm

1 in stock
