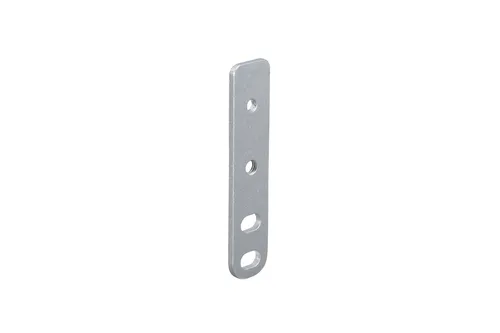

Type RA Bracket for Reflector Sensors, 56mm Long x 10mm Wide, 304 Stainless Steel, FSRASX035-S

SGD $7.00

Sensor brackets for reflector sensors are used to install sensors produced by major sensor manufacturers. They are available in a wide range of designs in precise dimensions for accuracy when in use.

Product Details

Name

Details

SKU

:

3340300002

Materials

:

304 SST

Weight (kg)

:

0.006

Manufacturer Part Number

:

FSRASX035-S

Manufacturer

:

Iwata

Country of Origin

:

Japan

Thickness

:

1.5mm

Width

:

10mm

Size/Length for Product

:

56mm

Quantity Per Package

:

1 pc

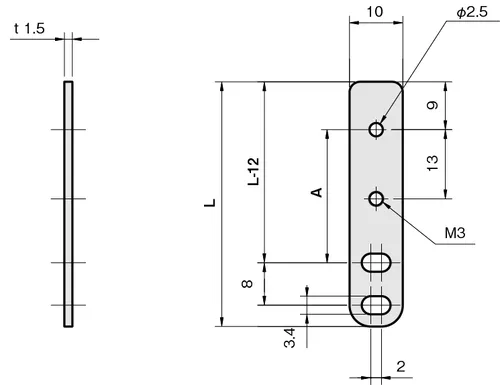

Reference Dimension A

:

35mm

1 in stock
