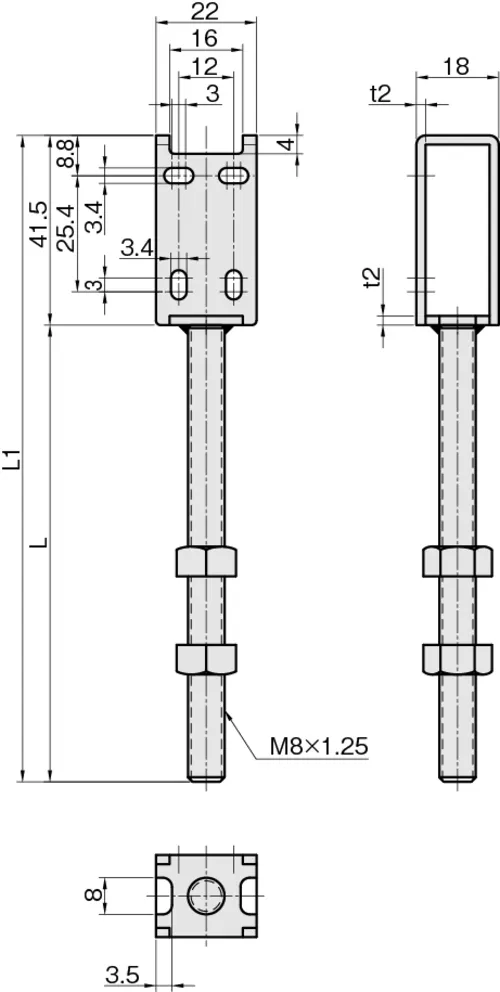

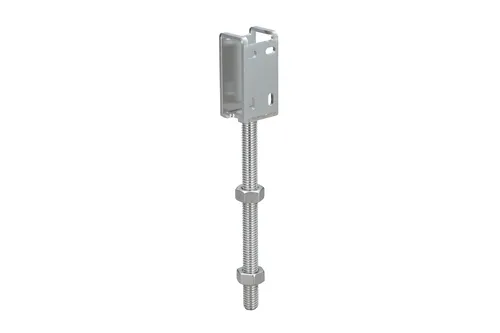

Threaded Screw Shaft Photoelectric Sensor Bracket for Mounting Vertical Sensors, M8 x L200mm Wide, 304 Stainless Steel, FSCZCV200-M8S

SGD $34.00

Sensor brackets for photoelectric sensors are used to install sensors produced by major sensor manufacturers. They are available in a wide range of designs in precise dimensions for accuracy when in use.

Product Details

Name

Details

SKU

:

3340200124

Materials

:

304 SST

Weight (kg)

:

0.089

Manufacturer Part Number

:

FSCZCV200-M8S

Manufacturer

:

Iwata

Country of Origin

:

Japan

Thickness

:

2.0mm

Width

:

200mm

Size/Length for Product

:

200mm

Quantity Per Package

:

1 pc

Type

:

For Mounting Vertical Sensors

Applicable Sensors

:

OMRON E3Z, KEYENCE PZ, SUNX CX, AZBIL HP, OPTEX FA Z

M

:

M8

Accessories

:

Hex Nut (SUS304) M8: 2 pcs

1 in stock
