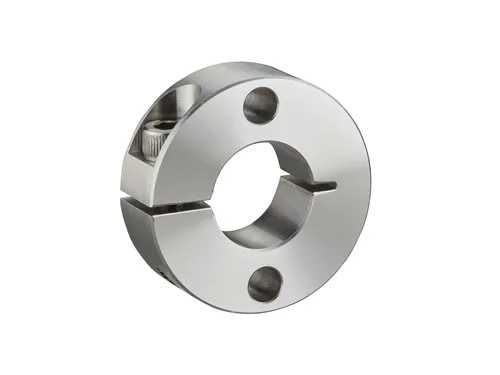

Slit Shaft Collar with 2 Holes, ID 8mm x OD 25mm, 10mm Long, 304 Stainless Steel, SCS0810SP2

SGD $12.00

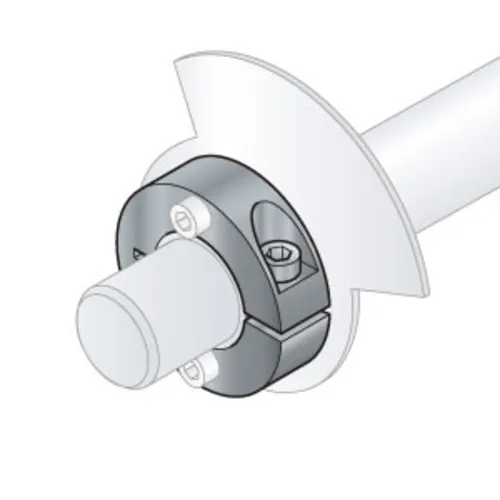

Slit shaft collars are great where shaft protection is of optimal importance. These shaft collars can slide along the shaft without any fear of scratching or denting. Slit shaft collars can be secured effectively with a socket head cap screw located on its side.

Product Details

Name

Details

SKU

:

33604040104

Materials

:

304 SST

Weight (kg)

:

0.029

Manufacturer Part Number

:

SCS0810SP2

Manufacturer

:

Iwata

Country of Origin

:

Japan

Size/Length for Product

:

10mm

Quantity Per Package

:

1 pc

Inner Diameter

:

8mm

Outer Diameter

:

25mm

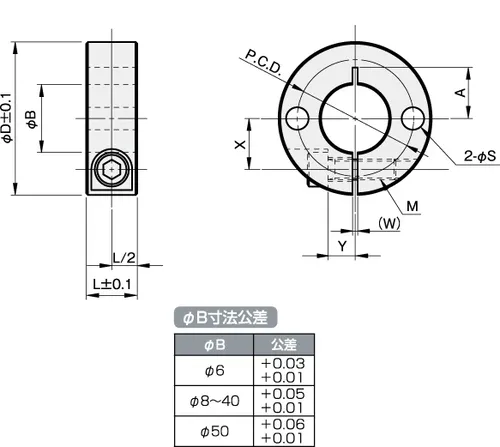

Lateral Hole ØS

:

4.5mm

Lateral Hole PCD

:

18mm

X

:

8mm

Tightening Screws M

:

M4 x 12mm

W

:

1.5mm

Y

:

5mm

A

:

9mm
