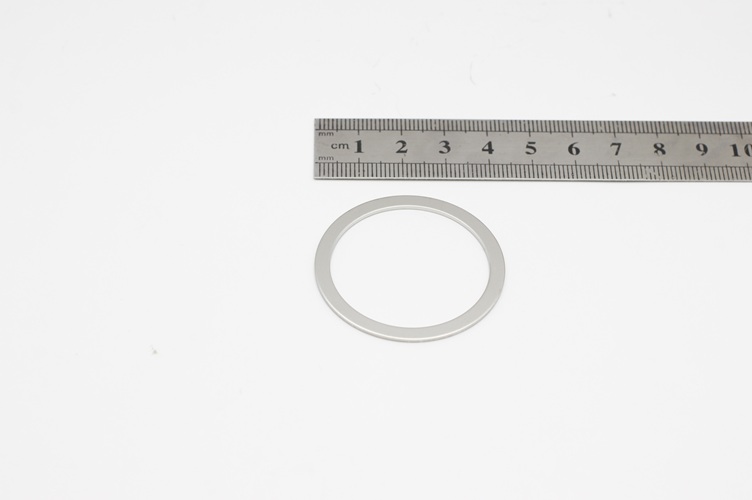

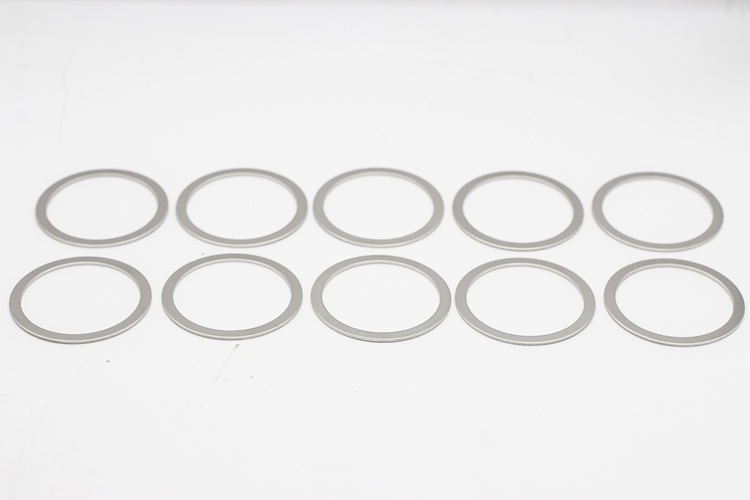

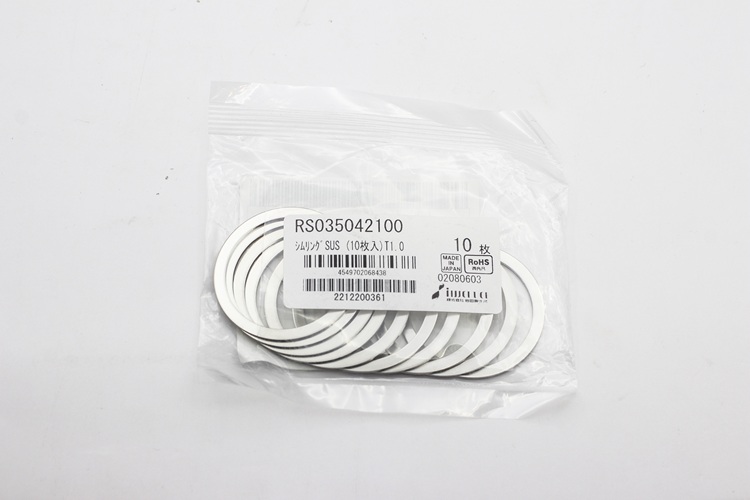

Shim Washer, 1.0mm Thick, ID 35mm x OD 42mm, SUS304 (Pack of 10), RS035042100

SGD $31.00

Use shim rings in a pack of ten pieces of the same thickness for your alignment needs. These are made of 304 stainless steel. Use single or multiple pieces to fulfill your gap alignment.

Product Details

Name

Details

SKU

:

30601044084

Materials

:

304 SST

Thickness Tolerance

:

+/- 0.035mm

Hardness

:

Full Hard

Standards Met

:

JIS G 4313

Weight (kg)

:

0.114

Manufacturer Part Number

:

RS035042100

Manufacturer

:

Iwata

Country of Origin

:

Japan

Thickness

:

1.0mm

Quantity Per Package

:

10 pcs

Profile

:

Pack (Metric)

Inner Diameter

:

35mm

Outer Diameter

:

42mm

2 in stock
