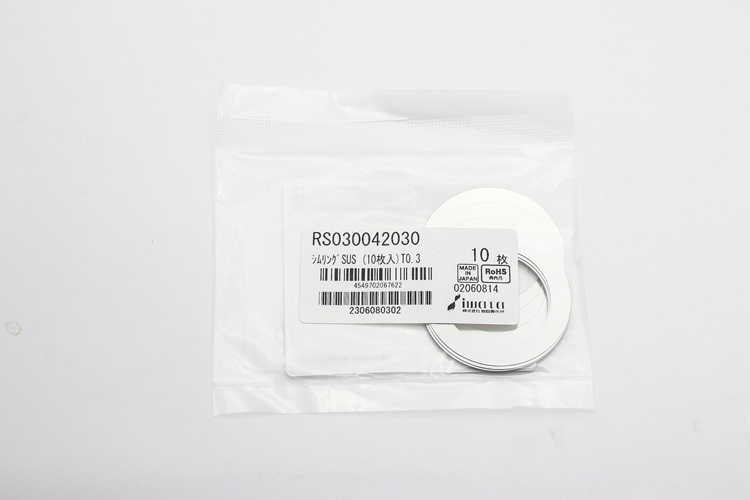

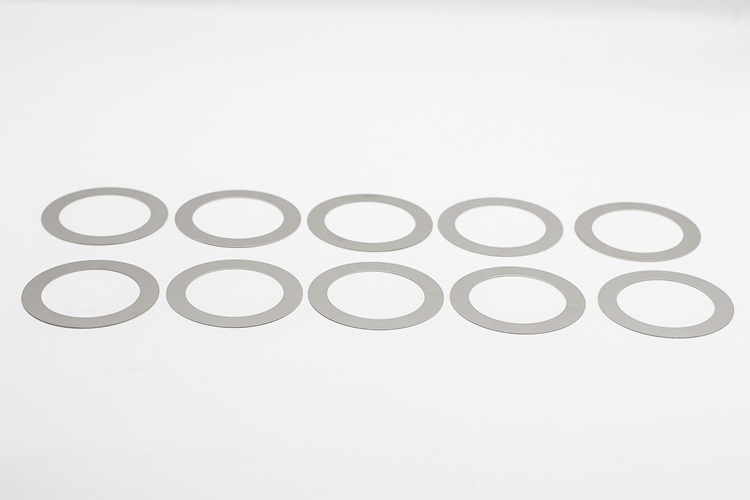

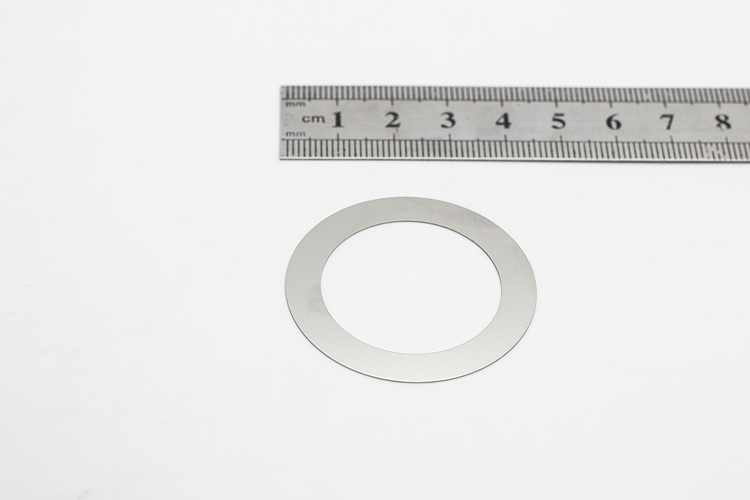

Shim Washer, 0.30mm Thick, ID 30mm x OD 42mm, SUS304 (Pack of 10), RS030042030

SGD $23.00

Use shim rings in a pack of ten pieces of the same thickness for your alignment needs. These are made of 304 stainless steel. Use single or multiple pieces to fulfill your gap alignment.

Product Details

Name

Details

SKU

:

30601044042

Materials

:

304 SST

Thickness Tolerance

:

+/- 0.015mm

Hardness

:

Full Hard

Standards Met

:

JIS G 4313

Weight (kg)

:

0.011

Manufacturer Part Number

:

RS030042030

Manufacturer

:

Iwata

Country of Origin

:

Japan

Thickness

:

0.30mm

Quantity Per Package

:

10 pcs

Profile

:

Pack (Metric)

Inner Diameter

:

30mm

Outer Diameter

:

42mm

3 in stock
