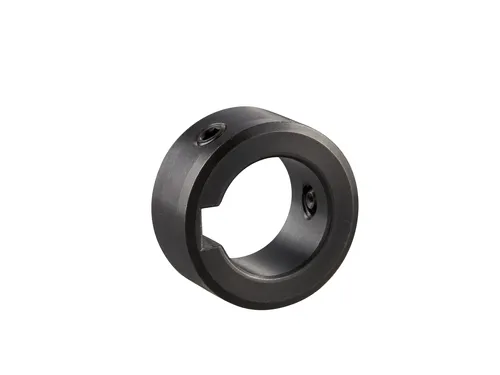

Shaft Collar with Keyway, ID 32mm x OD 53mm, 20mm Long, Carbon Steel S45C (Black Oxide), SC3220CK

SGD $22.50

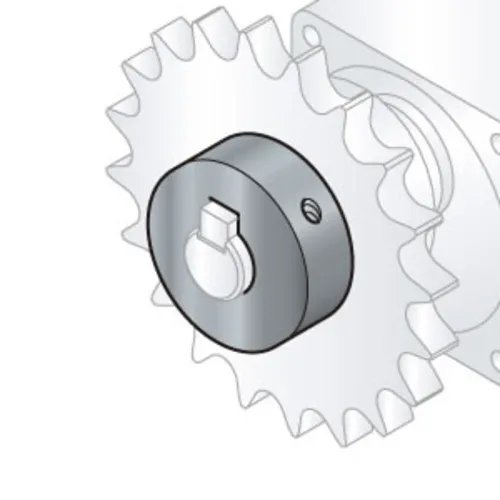

Set collars have an internal set screw that is marred onto the shaft to lock it in place. It is fastened with an allen key, making the locking process quick and easy.

Product Details

Name

Details

SKU

:

33603000910

Materials

:

Carbon Steel S45C (Black Oxide Finish)

Manufacturer Part Number

:

SC3220CK

Manufacturer

:

Iwata

Country of Origin

:

Japan

Size/Length for Product

:

20mm

Quantity Per Package

:

1 pc

Profile

:

With Keyway

Inner Diameter

:

32mm

Outer Diameter

:

53mm

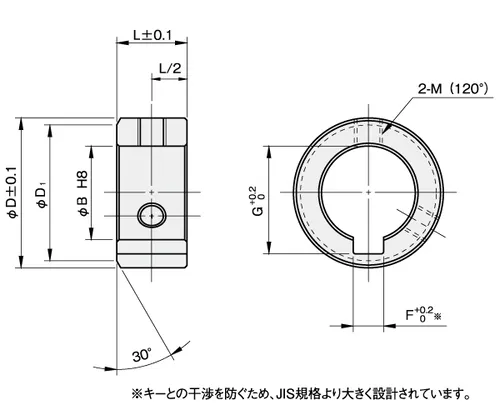

Tightening Screws M

:

M8 x 8mm

Chamfer Diameter ØD1

:

44mm

Keyway F

:

10.5mm

Keyway G

:

35.8mm

0 stock, ships in 20 days
