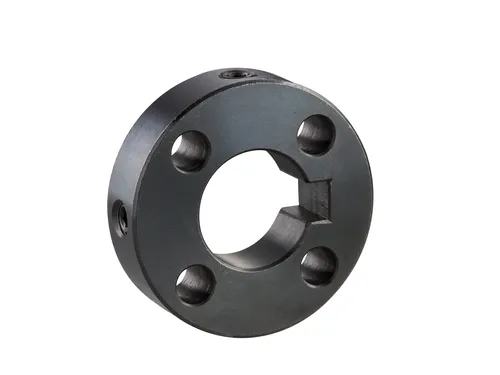

Shaft Collar with Keyway and 4 Lateral Holes , ID 25mm x OD 50mm, 15mm Long, Carbon Steel S45C (Black Oxide), SC2515CKP4

SGD $25.50

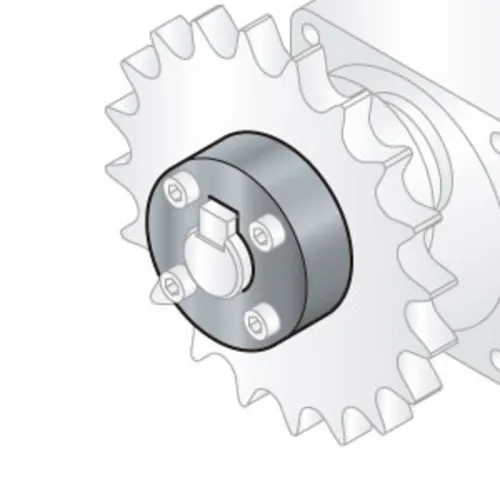

Set collars have an internal set screw that is marred onto the shaft to lock it in place. It is fastened with an allen key, making the locking process quick and easy.

Product Details

Name

Details

SKU

:

33603001109

Materials

:

Carbon Steel S45C (Black Oxide Finish)

Manufacturer Part Number

:

SC2515CKP4

Manufacturer

:

Iwata

Country of Origin

:

Japan

Size/Length for Product

:

15mm

Quantity Per Package

:

1 pc

Profile

:

With Keyway and 4 Lateral Holes

Inner Diameter

:

25mm

Outer Diameter

:

50mm

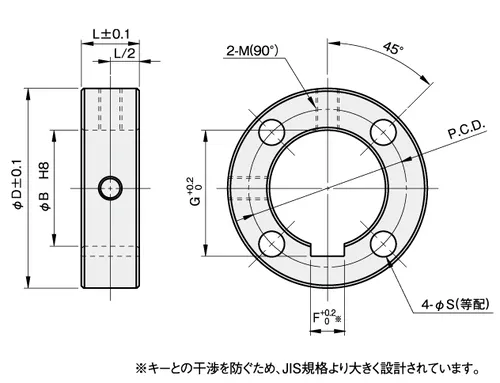

Lateral Hole ØS

:

6.6mm

Lateral Hole PCD

:

37mm

Tightening Screws M

:

M8 x 8mm

Keyway F

:

8.5mm

Keyway G

:

28.5mm

0 stock, ships in 20 days
