Shaft Collar with Keyway and 3 Lateral Holes, ID 18mm x OD 50mm, 15mm Long, Carbon Steel S45C (Black Oxide), SCS1815CKP3

SGD $30.10

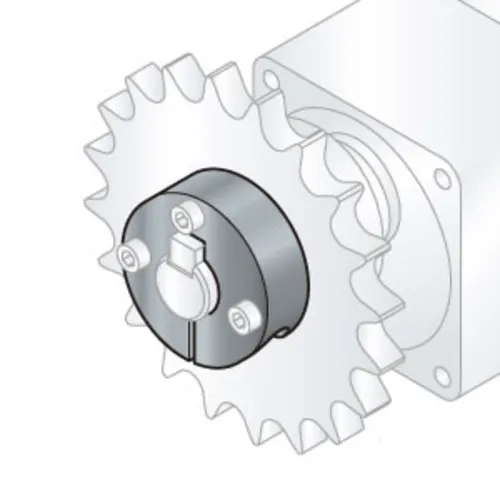

Slit shaft collars are great where shaft protection is of optimal importance. These shaft collars can slide along the shaft without any fear of scratching or denting. Slit shaft collars can be secured effectively with a socket head cap screw located on its side.

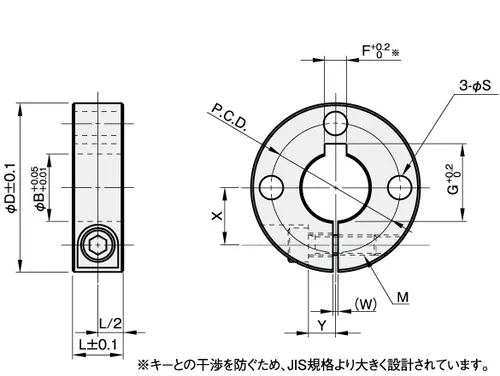

Product Details

Name

Details

SKU

:

33604001503

Materials

:

Carbon Steel S45C (Black Oxide Finish)

Weight (kg)

:

0.183

Manufacturer Part Number

:

SCS1815CKP3

Manufacturer

:

Iwata

Country of Origin

:

Japan

Size/Length for Product

:

15mm

Quantity Per Package

:

1 pc

Inner Diameter

:

18mm

Outer Diameter

:

50mm

Lateral Hole ØS

:

7mm

Lateral Hole PCD

:

38mm

X

:

17mm

Tightening Screws M

:

M6 x 20mm

Keyway F

:

6.5mm

Keyway G

:

21mm

W

:

1.5mm

Y

:

8mm
