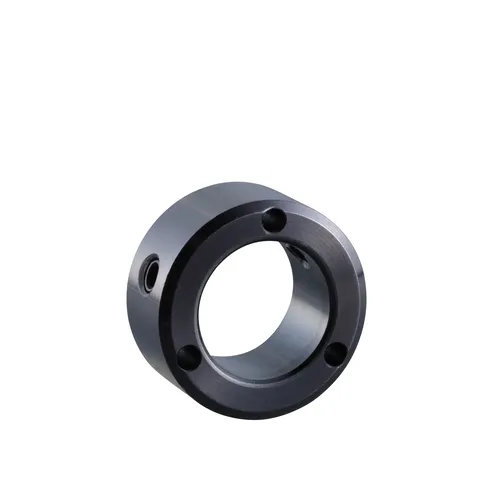

Shaft Collar with 3 Holes, ID 12mm x OD 22mm, 8mm Long, Carbon Steel S45C (Black Oxide Finish), SC1208CP3

SGD $9.00

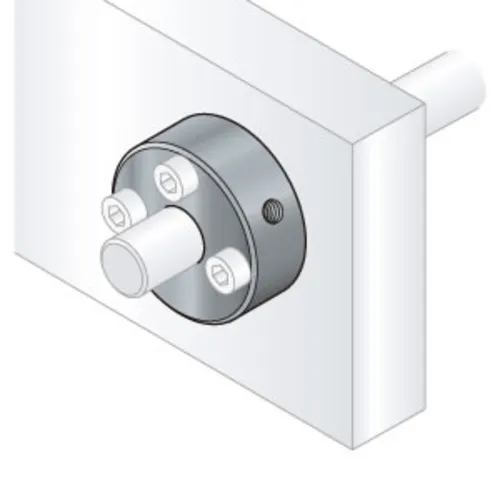

Set collars have an internal set screw that is marred onto the shaft to lock it in place. It is fastened with an allen key, making the locking process quick and easy.

Product Details

Name

Details

SKU

:

33603000201

Materials

:

Carbon Steel S45C (Black Oxide Finish)

Manufacturer Part Number

:

SC1208CP3

Manufacturer

:

Iwata

Country of Origin

:

Japan

Size/Length for Product

:

8mm

Quantity Per Package

:

1 pc

Profile

:

With 3 Holes

Inner Diameter

:

12mm

Outer Diameter

:

22mm

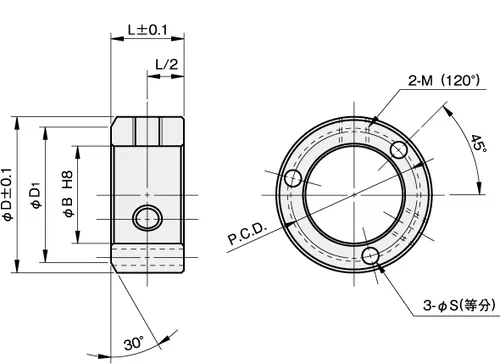

Lateral Hole ØS

:

3mm

Lateral Hole PCD

:

17mm

Tightening Screws M

:

M4 x 4mm

Chamfer Diameter ØD1

:

20mm

0 stock, ships in 20 days
