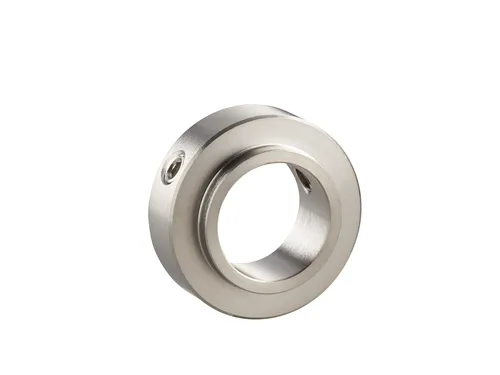

Shaft Collar for Bearings, ID 20mm x OD 35mm, 13mm Long, Carbon Steel S45C (Electroless Nickel Plating), SC2013MB3

SGD $19.80

Set collars have an internal set screw that is marred onto the shaft to lock it in place. It is fastened with an allen key, making the locking process quick and easy.

Product Details

Name

Details

SKU

:

33603010524

Materials

:

Carbon Steel S45C (Electroless Nickel Plating)

Manufacturer Part Number

:

SC2013MB3

Manufacturer

:

Iwata

Country of Origin

:

Japan

Size/Length for Product

:

13mm

Quantity Per Package

:

1 pc

Profile

:

For Bearings

Inner Diameter

:

20mm

Outer Diameter

:

35mm

Tightening Screws M

:

M6 x 6mm

Corresponding Bearing Model

:

6904ZZ

Boss Diameter ØD1

:

24.7mm

Length L1

:

3mm

0 stock, ships in 20 days
