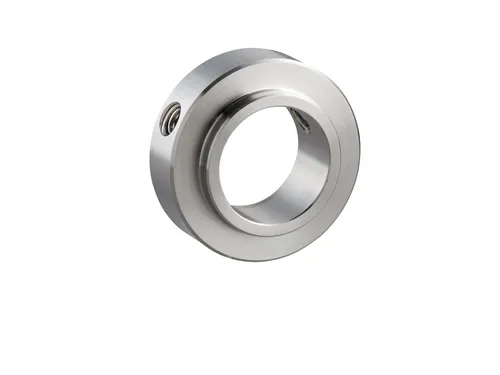

Shaft Collar for Bearings, ID 10mm x OD 20mm, 11mm Long, 304 Stainless Steel, SC1011SB3

SGD $18.60

Set collars have an internal set screw that is marred onto the shaft to lock it in place. It is fastened with an allen key, making the locking process quick and easy.

Product Details

Name

Details

SKU

:

33603040512

Materials

:

304 SST

Manufacturer Part Number

:

SC1011SB3

Manufacturer

:

Iwata

Country of Origin

:

Japan

Size/Length for Product

:

11mm

Quantity Per Package

:

1 pc

Profile

:

For Bearings

Inner Diameter

:

10mm

Outer Diameter

:

20mm

Tightening Screws M

:

M5 x 6mm

Corresponding Bearing Model

:

6900ZZ

Boss Diameter ØD1

:

13.2mm

Length L1

:

3mm

0 stock, ships in 20 days
