Pan Head Phillips Screw, 10-24 x 3/8″, A2 SST, ISO7045, Pack of 50

SGD $15.00

Similar to Button Head screws, Pan Head screws have a rounded head that effectively distributes load across the work surface, preventing damage to the parent material. Shown here are Pan Head Phillips screws which are fastened with screw drivers.

Product Details

Name

Details

SKU

:

33505010037

Materials

:

A2 SST

Weight (kg)

:

0.080

Country of Origin

:

China

Size/Length for Product

:

3/8 inch (9.52mm)

Quantity Per Package

:

50 pcs

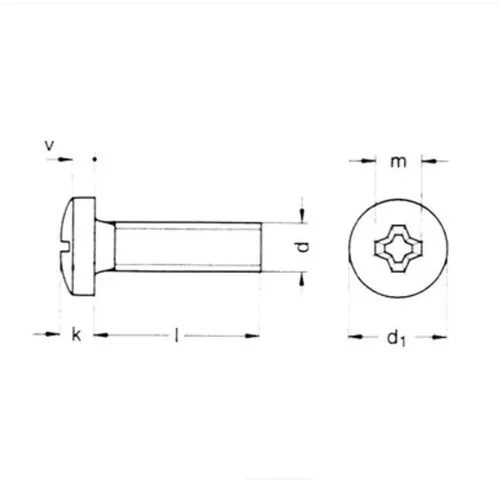

M

:

0.199 inch (5.05mm)

D1:

:

0.373 inch (9.47mm)

Thread Size

:

10-24 UNC

Pitch

:

24 TPI

Reference Standard

:

ISO7045

K:

:

0.110 inch (2.79mm)

V:

:

0.042 inch (1.07mm)

21 in stock
