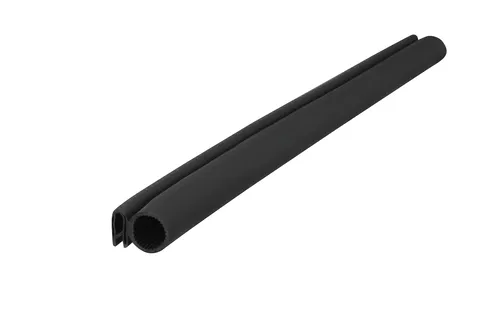

Molded Seal For Plate Thickness 1.6mm, 50M, TPE (Black), TSGB160A

SGD $1,080.00

This is a trim seal with a cushioned tube attached to the edge trim. The trim and tube are molded as a single piece, so there is no need to worry about them separating. As it uses a material with excellent oil resistance, it is ideal for door parts of machines and tools. Molded Seals can be attached to the edges of boards without using adhesive. They prevent injury and damage that might occur on impact. The aluminum core provides high grip strength, while also being lightweight and corrosion-resistant. They are made from TPE, which is softer than PVC and recyclable.

Product Details

Name

Details

SKU

:

32205030005

Materials

:

TPE

Weight (kg)

:

7.25

Manufacturer Part Number

:

TSGB160A

Manufacturer

:

Trimlok

Country of Origin

:

USA

Size/Length for Product

:

50 Metres

Quantity Per Package

:

1 roll

Type

:

A

Colour

:

Black

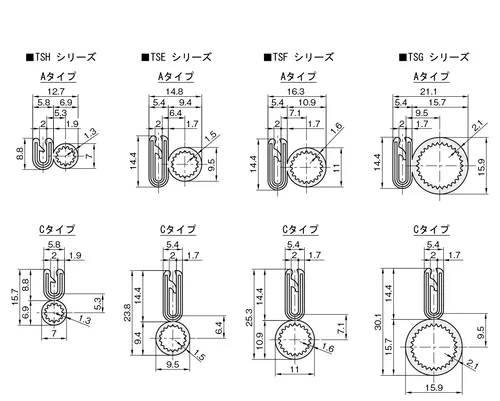

F

:

9.7mm

A

:

5mm

B:

:

14.5mm

Tube Diameter

:

16mm

Series

:

TSG

Nominal Plate Thickness

:

1.6mm

Can be Used For Thickness

:

1.2 to 2.4mm

Pattern

:

Plain

C:

:

1.7mm

t:

:

1.6mm

r:

:

3mm

Cored Bar

:

Aluminum A5052

E:

:

21mm

G:

:

20.9mm

0 stock, ships in 20 days
