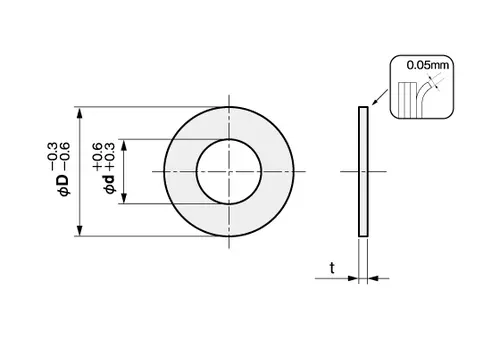

Laminated Shim Washer, 1.0mm Thick, ID 52mm x OD 62mm, 0.05mm Laminates, SUS304 (Pack of 5), RS5052062100

SGD $53.00

Align your gaps seamlessly with our laminated shim washers. Peel each 0.05mm layer easily (with a fine enough knife) off to your required thickness. Choose from our wide range of diameters available.

Product Details

Name

Details

SKU

:

30602043028

Materials

:

304 SST

Thickness Tolerance

:

+0.1mm / 0

Hardness

:

Annealed

Standards Met

:

JIS G 4313

Weight (kg)

:

0.036

Manufacturer Part Number

:

RS5052062100

Manufacturer

:

Iwata

Country of Origin

:

Japan

Thickness

:

1.0mm

Quantity Per Package

:

5 pcs

Profile

:

Pack (Metric)

Inner Diameter

:

52mm

Outer Diameter

:

62mm

1 in stock
