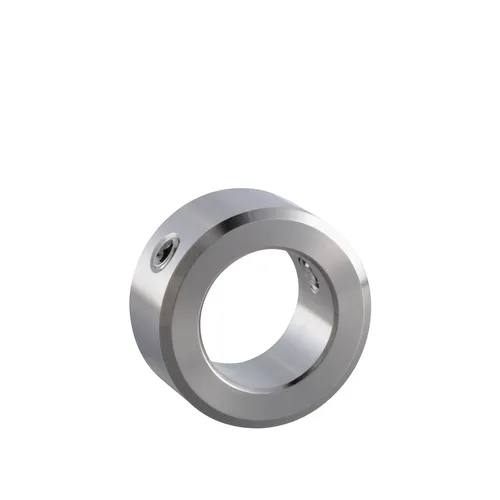

Basic Set Collar, ID 10mm x OD 18mm, 8mm Long, Carbon Steel S45C (Electroless Nickel Plating), SC1008M

SGD $4.60

Set collars have an internal set screw that is marred onto the shaft to lock it in place. It is fastened with an allen key, making the locking process quick and easy.

Product Details

Name

Details

SKU

:

33603010021

Materials

:

Carbon Steel S45C (Electroless Nickel Plating)

Weight (kg)

:

0.010

Manufacturer Part Number

:

SC1008M

Manufacturer

:

Iwata

Country of Origin

:

Japan

Size/Length for Product

:

8mm

Quantity Per Package

:

1 pc

Inner Diameter

:

10mm

Outer Diameter

:

18mm

Tightening Screws M

:

M4 x 4mm

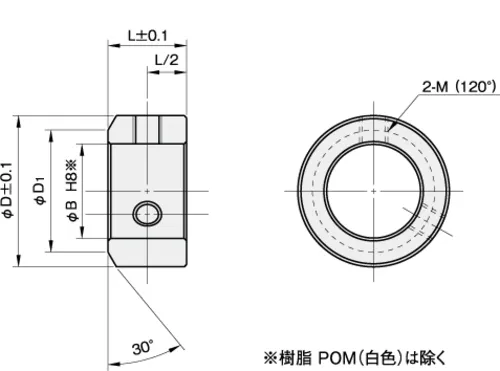

Chamfer Diameter ØD1

:

16mm

0 stock, ships in 20 days
